Understanding the Differences Between DIP, SMD, and COB in LED Screen Installation
When it comes to LED screen installation, particularly in the context of digital displays or signage, three commonly used technologies are DIP (Dual In-line Package), SMD (Surface-Mounted Device), and COB (Chip-on-Board).
When it comes to LED screen installation, particularly in the context of digital displays or signage, three commonly used technologies are DIP (Dual In-line Package), SMD (Surface-Mounted Device), and COB (Chip-on-Board). Each of these technologies has unique characteristics, applications, and benefits depending on the intended use of the screen. Understanding the differences between these technologies can help you make an informed decision about the best LED screen solution for a specific installation.

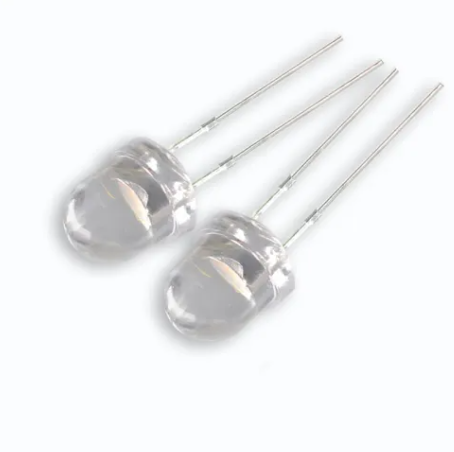

1. DIP (Dual In-line Package)
DIP refers to a type of LED packaging where the LED chip is mounted into a plastic package with two leads that are inserted into a printed circuit board (PCB). The DIP LEDs are often used in older LED display technology and are characterized by their distinct, larger size and somewhat lower resolution.
Key Characteristics:
· Size and Shape: DIP LEDs tend to be larger compared to modern SMD and COB LEDs, with a more bulky appearance. They are typically arranged in rows and columns, with the individual LEDs clearly visible.
· Brightness: DIP LEDs are known for their high brightness levels, making them suitable for outdoor installations, such as billboards or traffic signage, where visibility is crucial under direct sunlight.
· Viewing Angle: They have a narrower viewing angle, meaning they are most effective when viewed head-on.
· Power Consumption: DIP LEDs consume more power than newer technologies like SMD or COB.
· Resolution: DIP displays generally offer lower resolution compared to SMD and COB, which may be a limitation for applications requiring high-definition visuals.
Applications:
· Outdoor Advertising: Due to their high brightness and visibility, DIP LEDs are often used in large-scale outdoor advertising boards.
· Traffic Signs: They are also used in traffic signal lights and electronic billboards where high visibility is more important than high resolution.

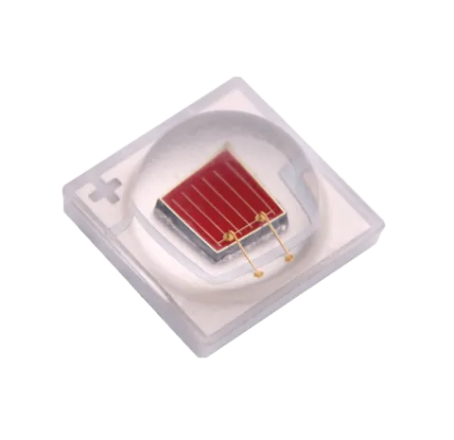

2. SMD (Surface-Mounted Device)
SMD LEDs are a more modern and versatile technology, widely used in LED screens today. In SMD LED technology, the LED chips are mounted directly onto the surface of a PCB, which allows for a more compact design. This technology is commonly used in both indoor and outdoor displays, offering a significant improvement over DIP LEDs in terms of resolution and viewing angles.
Key Characteristics:
· Size and Shape: SMD LEDs are much smaller than DIP LEDs, which allows for higher pixel density and better resolution in LED screens. The SMD package is usually a small square or rectangular chip mounted directly onto the PCB.
· Brightness: SMD LEDs provide excellent brightness, though typically not as high as DIP LEDs. However, they are more suitable for a wide range of applications due to their balanced performance.
· Viewing Angle: SMD LEDs have a wider viewing angle compared to DIP, often up to 160-180 degrees. This means that the display is clearly visible from multiple angles, making SMD ideal for indoor use where the audience may be spread across a large area.
· Resolution: SMD LEDs support higher resolution displays compared to DIP. This is particularly beneficial for applications like video walls, retail displays, and indoor signage where finer detail and sharper images are needed.
· Power Consumption: While SMD LEDs are more power-efficient than DIP LEDs, they still consume more power than COB LEDs.
Applications:
· Indoor and Outdoor LED Displays: SMD LEDs are commonly used in video walls, large digital signage, and indoor LED screens due to their high resolution and versatility.
· TV Screens and Monitors: Many modern LED TVs and computer monitors use SMD technology for better clarity and thinner designs.

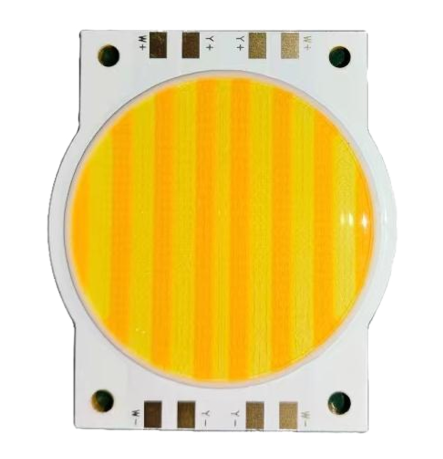

3. COB (Chip-on-Board)
COB is a relatively new LED technology where multiple LED chips are directly mounted onto a PCB, typically using a heat sink to dissipate the heat generated by the LEDs. This allows for high brightness, uniform light distribution, and compact designs, making it an ideal choice for many high-end and large-scale LED displays.
Key Characteristics:
· Size and Shape: COB LEDs are small and compact, often using a "bare chip" approach, which allows for dense packing of LED chips. This contributes to the small form factor of the final display.
· Brightness: COB LEDs provide superior brightness and light uniformity. The direct bonding of chips to the board allows for more efficient light emission and better thermal management, which contributes to increased longevity and efficiency.
· Viewing Angle: COB LEDs provide a wider viewing angle and better color consistency than traditional DIP LEDs. The improved light distribution results in a more uniform appearance, even at wider angles.
· Resolution: COB technology allows for very high resolution, as the LEDs are closely packed together and can be made smaller without compromising on light output. This makes COB ideal for fine-pitch LED screens used in applications requiring high-definition visuals.
· Power Consumption: COB technology is the most power-efficient among the three, thanks to its better heat management and energy-efficient design.
Applications:
· High-Resolution Displays: Due to their ability to pack more pixels into a small space, COB LEDs are often used in high-end indoor displays, such as conference room screens, luxury retail signage, and control rooms.
· Fine-Pitch LED Screens: COB is particularly suitable for applications where high pixel density is required, like in digital cinema screens and advanced LED walls.
Key Differences Between DIP, SMD, and COB:
| Aspect | DIP | SMD | COB |
| Size | Larger and bulkier | Smaller and more compact | Small, with multiple chips in one area |
| Brightness | High, suitable for outdoor use | Balanced, suitable for indoor & outdoor | Superior brightness with uniform light |
| Viewing Angle | Narrow | Wide | Very wide, uniform light distribution |
| Resolution | Low (larger pixel pitch) | Higher (smaller pixel pitch) | Very high, ideal for fine-pitch displays |
| Power Consumption | High | Moderate | Low |
| Heat Dissipation | Less efficient | More efficient than DIP | Highly efficient, better thermal management |
| Applications | Outdoor signage, traffic signs | Indoor/outdoor displays, video walls | High-resolution indoor displays, fine-pitch screens |
Conclusion
Choosing the right LED technology depends largely on the intended application, environmental factors, and the desired visual quality. DIP LEDs are ideal for applications that require high brightness and durability in harsh outdoor environments, while SMD offers a balance of good resolution and brightness for both indoor and outdoor settings. COB LEDs, on the other hand, are perfect for applications requiring fine resolution, high brightness, and power efficiency, particularly in modern, high-end installations. Understanding the differences between these technologies will help you make the right choice for your LED screen installation.
