Due to its excellent biocompatibility, excellent mechanical properties, and excellent chemical stability, PEEK is an ideal material for 3D printing applications in the medical field



The application of 3D printed PEEK in the medical field



In the development of medical technology, the integration of 3D printing technology and high-performance biomaterials has opened up a new path for medical innovation. Polyetheretherketone (PEEK) is an ideal material for 3D printing applications in the medical field due to its excellent biocompatibility, excellent mechanical properties, and excellent chemical stability. The combination of the two not only revolutionizes the traditional medical model, but also brings better and more personalized medical solutions to patients.



3D print PEEK to create personalized implants

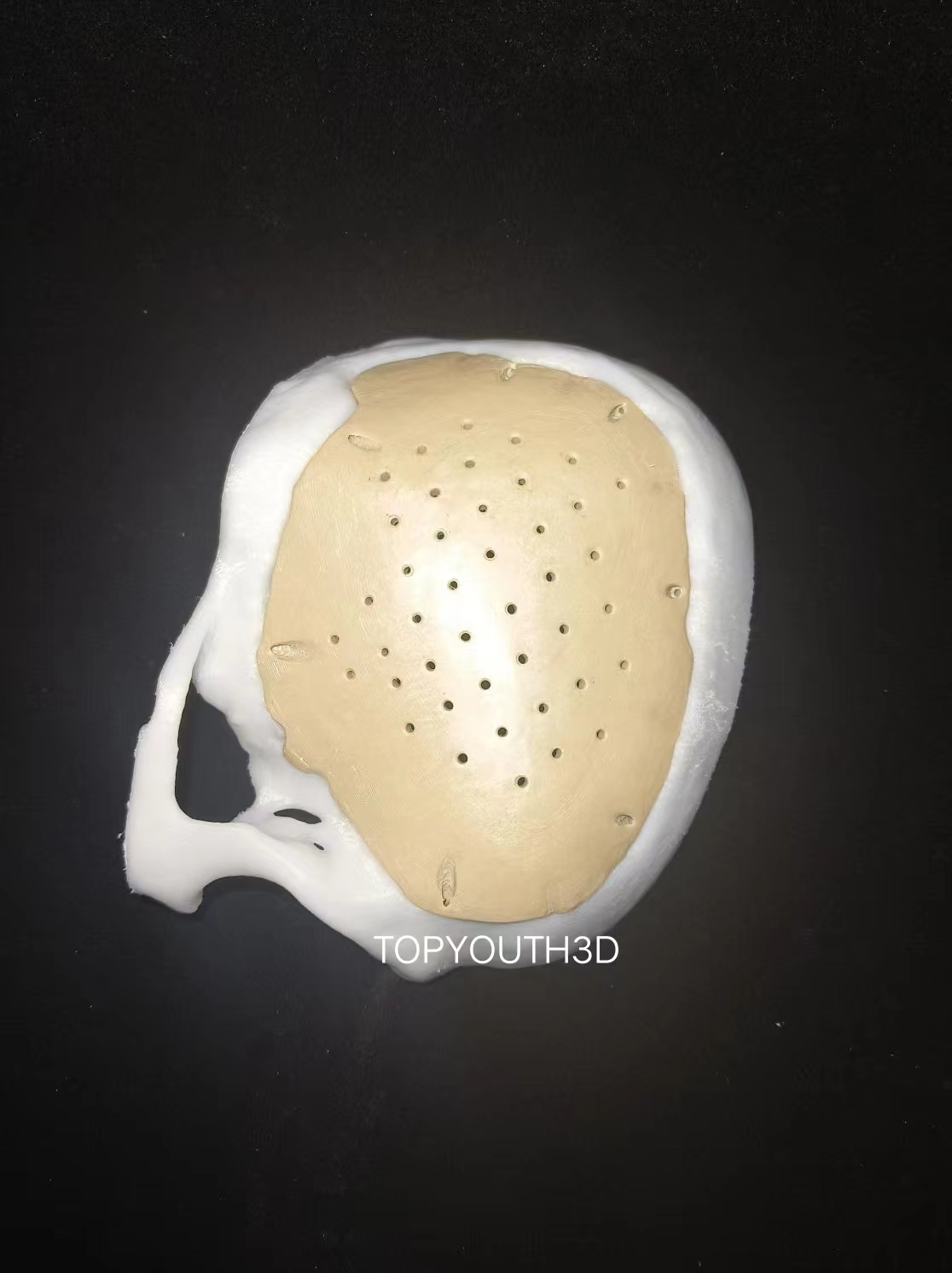

Skull repair:

Skull defects not only affect the appearance of patients, but also pose a serious threat to brain safety. Traditional cranial repair materials, such as titanium mesh, have problems such as poor fit with the skull, high risk of postoperative infection, and interference with imaging artifacts. 3D printed PEEK skull restorations address these challenges. Doctors perform high-precision CT scans of patients to obtain detailed data about the skull defects, use computer-aided design (CAD) software to build personalized 3D models, and then use 3D printing technology to create PEEK restorations that closely match the patient's skull morphology. The prosthesis not only has an excellent fit, significantly reducing the risk of postoperative infection, but also does not produce artifacts in imaging examinations such as CT and MRI, which greatly facilitates postoperative condition monitoring. According to statistics, the postoperative infection rate of 3D printed PEEK skull prostheses is reduced by about 67% compared with titanium mesh, the osseointegration rate is increased by 2.3 times, and the osseointegration rate can reach 98% at 6 months.





Spinal implants:

Spinal diseases often have a significant impact on the quality of life of patients, and in some cases, spinal fusion devices are implanted to restore spinal stability. The 3D-printed PEEK spinal fusion device can be tailored to the anatomy and lesions of the patient's spine, and its unique porous structure facilitates the growth of bone cells and accelerates the bone fusion process. Through the topology optimization algorithm, the internal structure of the fuser can also be adjusted to make its mechanical properties closer to the human spine, reduce the stress shielding effect, reduce the risk of degeneration of adjacent vertebral bodies, and help patients recover faster.



Customized surgical guides:

Surgical guides are essential in complex surgeries to guide surgeons to operate more precisely and reduce surgical risks. The 3D printed PEEK surgical guide can be customized to the patient's specific anatomy, closely fitting the surgical site and providing accurate guidance to the physician. In oral and maxillofacial surgery, surgeons can accurately plan the placement, angle, and depth of implants with the help of 3D printed PEEK surgical guides, significantly improving the success rate of the procedure and reducing the operation time and patient trauma.



Complex Surgical Instruments:

Some complex surgeries require extremely high requirements for the shape and structure of surgical instruments, which are difficult to meet with traditional manufacturing processes. The advent of 3D printing technology has overcome this limitation, and surgical instruments printed with PEEK materials not only have complex geometries, but also have good biocompatibility and mechanical properties. For example, in neurosurgery, 3D-printed PEEK tweezers and scissors can penetrate deep into the confined surgical space and operate with precision to reduce damage to surrounding tissues.



construct tissue engineering scaffolds,

Tissue engineering scaffolds are a key element of regenerative medicine, supporting cell growth and tissue repair. 3D printed PEEK tissue-engineered scaffolds that can precisely control the porosity, pore size, and internal structure of the scaffold to mimic the microenvironment of human tissue. This scaffold promotes cell adhesion, proliferation, and differentiation, and directs tissue regeneration. In the field of bone tissue engineering, the combination of 3D printed PEEK scaffolds and stem cells is expected to realize the in-situ regeneration of bone defects, bringing new treatment options to patients with bone defects.



Status quo and challenges



Although 3D printed PEEK has shown great potential in the medical field, there are still some challenges. On the one hand, the high cost of PEEK materials and the complexity of 3D printing equipment and processes have led to the high price of related products, limiting its wide application. On the other hand, the relevant regulatory standards and norms are not perfect, which brings certain difficulties to the approval and marketing of products.



prospect



With the continuous advancement of materials science, 3D printing technology, and the gradual improvement of regulatory policies, the application prospect of 3D printing PEEK in the medical field will become more and more broad. In the future, it will not only continue to optimize in existing fields, but also expand to more cutting-edge directions, such as 3D printing PEEK combined with bioactive substances to build implants with therapeutic functions; With the help of artificial intelligence technology, realize the intelligent design of 3D printed PEEK medical devices, etc. It is believed that in the near future, 3D printed PEEK will bring more surprises and changes to the medical and health field.
